Dry type transformers come in four main varieties: open wound, vacuum pressure impregnated (VPI), vacuum pressure encapsulated (VPE), and cast coil. Each type offers unique characteristics suited for different applications, ranging from compact designs with direct air cooling to exceptional resistance against harsh environmental conditions.

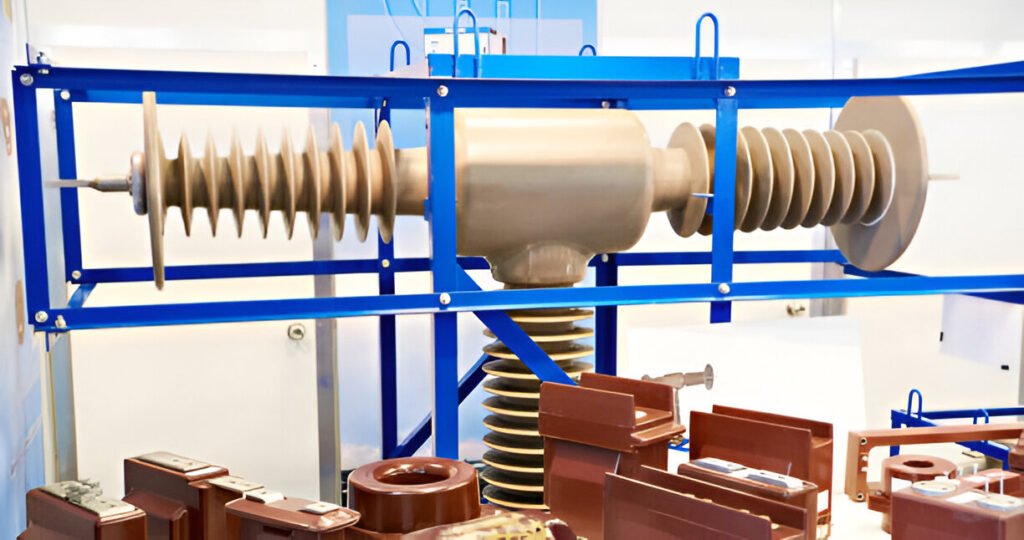

Types of Dry Type Transformers
Open Wound Transformers
Open wound transformers consist of coils wound around a core, with no enclosure or housing. The coils are typically made of copper or aluminum and are insulated with materials such as paper, varnish, or enamel. The core is usually made of laminated steel sheets, which help to reduce eddy current losses and improve efficiency.
One of the main advantages of open wound transformers is their excellent cooling properties. The exposed coils allow for better heat dissipation, which can help to extend the life of the transformer and reduce the risk of overheating. This makes them well-suited for applications where high temperatures are a concern, such as in industrial settings or in areas with high ambient temperatures.
However, the lack of an enclosure also means that open wound transformers are more susceptible to environmental factors such as dust, moisture, and debris. This can lead to a shorter lifespan and increased maintenance requirements compared to other types of dry type transformers. They also have a lower impulse strength than other types, which means they may be more vulnerable to damage from voltage spikes or surges.
Vacuum Pressure Impregnated (VPI) Transformers
Vacuum Pressure Impregnated (VPI) transformers offer enhanced insulation and improved thermal performance compared to open wound transformers. The manufacturing process involves placing the transformer coils in a vacuum chamber, where air and moisture are removed from the insulation materials. The coils are then impregnated with a high-quality insulating varnish or resin, which is cured under pressure to ensure thorough penetration and even distribution throughout the windings.
The VPI process results in a transformer with excellent mechanical strength, increased resistance to moisture, and improved dielectric properties. These transformers can operate at higher temperatures than open wound transformers, typically up to 220°C (428°F), allowing for more compact designs and better overload capacity. VPI transformers also exhibit lower noise levels and reduced vibration due to the solid insulation and tight winding construction.
VPI transformers are suitable for a wide range of applications, including industrial facilities, commercial buildings, and renewable energy systems. They are commonly used in environments with moderate to high humidity levels or where the transformer may be exposed to dust, dirt, or other contaminants. The enhanced insulation properties of VPI transformers make them more resistant to environmental factors, leading to a longer service life and reduced maintenance requirements compared to open wound transformers.
Vacuum Pressure Encapsulated (VPE) Transformers
Vacuum Pressure Encapsulated (VPE) transformers offer superior insulation and protection against environmental factors. In the VPE process, the transformer windings are placed in a mold and then sealed with a high-quality epoxy resin under vacuum pressure. This process ensures that the windings are completely encapsulated, eliminating any air gaps or voids that could lead to insulation breakdown.
One of the key advantages of VPE transformers is their excellent resistance to moisture, dust, and other contaminants. The epoxy resin encapsulation provides a robust barrier against these elements, ensuring reliable operation even in harsh industrial environments. Additionally, VPE transformers exhibit good thermal stability, allowing them to withstand higher operating temperatures without compromising insulation integrity.
VPE transformers are known for their compact design and superior mechanical strength compared to open wound or VPI transformers. The encapsulation process results in a solid, monolithic structure that can withstand significant physical stresses and vibrations. This makes VPE transformers ideal for applications where space is limited, or where the transformer may be subject to mechanical shocks or seismic activity.
Cast Coil Transformers
Cast coil transformers are a highly reliable and efficient type of dry type transformer. In this design, the windings are completely encapsulated in a solid insulating material, typically epoxy resin or silica sand. The casting process ensures excellent mechanical protection and moisture resistance, making cast coil transformers suitable for harsh environments. These transformers offer superior thermal performance, as the solid insulation provides better heat dissipation compared to air-insulated designs.
One of the key advantages of cast coil transformers is their ability to withstand high short-circuit forces without damage. The solid insulation effectively locks the windings in place, preventing movement during fault conditions. This feature enhances the transformer’s durability and extends its service life. Additionally, cast coil transformers exhibit low noise levels during operation, making them ideal for installations in noise-sensitive areas such as hospitals, schools, and office buildings.
The manufacturing process of cast coil transformers involves vacuum pressure impregnation (VPI) followed by a precision casting process. This combination results in a void-free, homogeneous insulation structure that offers excellent dielectric strength and resistance to partial discharges. The absence of air pockets within the insulation also minimizes the risk of internal corona discharge, further improving the transformer’s reliability and longevity.
Factors to Consider When Selecting a Dry Type Transformer
Voltage and power rating requirements
Primary voltage matches the power source, while secondary voltage aligns with equipment requirements. Calculate total connected load for all devices powered by the transformer. Add 10-20% safety margin for future expansions or unexpected loads.
Choose a transformer with a power rating exceeding the calculated load to ensure optimal performance and longevity. Consider voltage fluctuations in the power supply and equipment tolerance. Multiple tap settings may be necessary to accommodate variations.
Indoor vs outdoor installation
Indoor installations of dry type transformers offer a controlled environment, protecting against extreme weather conditions. This environment extends the transformer’s lifespan. Proper ventilation and cooling systems prevent overheating. Indoor setups require less protective enclosures, potentially reducing costs.
Outdoor installations expose transformers to harsh elements. Weatherproof enclosures protect against rain, snow, and UV radiation. These enclosures must provide adequate cooling and ventilation. The ambient temperature range affects the transformer’s efficiency. Extreme heat or cold can impact performance.
Environmental conditions
Environmental conditions significantly impact dry type transformer selection. Temperature, humidity, and chemical exposure are key factors to consider.
Temperature affects transformer performance and lifespan. High ambient temperatures can cause overheating, reducing efficiency and shortening the transformer’s life. Select transformers with appropriate temperature ratings for average and extreme conditions in your environment.
Humidity compromises insulation in dry type transformers, leading to electrical failures. For high-humidity areas, choose transformers with enhanced moisture protection or use additional enclosures.
Chemical exposure poses risks in certain industries or environments. Corrosive gases, salt air, or other harmful substances can damage transformers. In these cases, select transformers with specialized coatings or enclosures to withstand these conditions.
Efficiency and power loss considerations
Efficiency and power loss impact dry type transformer selection. Higher efficiency reduces energy waste as heat, lowering operating costs and environmental impact. Transformers with efficiency ratings above 98% offer optimal performance.
Power loss occurs in two forms:
- No-load losses: Constant losses due to core magnetization, even without load.
- Load losses: Occur when current flows through windings, causing resistance and eddy currents.
To minimize losses, select transformers with high-quality core materials like amorphous metal or grain-oriented silicon steel.
Maintenance needs and service life
Dry type transformers require less maintenance than oil-filled models but need regular attention. Schedule periodic inspections to check for dust accumulation, which impedes heat dissipation and reduces efficiency. Clean surfaces and ventilation openings to maintain optimal performance.
Budget and space constraints
Dry type transformer selection requires careful consideration of budget and space constraints. Assess your specific requirements before choosing a model. Evaluate initial investment against long-term operating costs. Higher upfront costs may yield better energy efficiency and lower electricity bills over time. Include installation costs in your calculations.
Space limitations impact transformer choice. Measure available facility area and compare to transformer dimensions. Account for clearance and ventilation needs. Compact designs or wall-mounted units suit limited spaces.
