Choosing the right distribution transformer involves considering several key factors. These include the type of transformer (liquid-filled or dry-type), technical specifications, load characteristics, sizing, installation location, voltage ratio, phase configuration, efficiency, and cost. By carefully evaluating these aspects, you can select a distribution transformer that best meets your specific needs and operational requirements.

Types of Distribution Transformers

Liquid-Filled Transformers

Liquid-filled transformers use a dielectric fluid, typically mineral oil, as an insulating and cooling medium. These transformers are known for their high efficiency and excellent heat dissipation properties. The liquid inside the transformer serves dual purposes: it insulates the internal components and helps transfer heat away from the core and windings.

Dry-Type Transformers

Dry-type transformers, as the name suggests, do not use any liquid insulating medium. Instead, they rely on air and solid insulating materials to cool and insulate the core and windings.

Technical Specifications

• Voltage Rating: Specifies the primary and secondary voltage levels the transformer is designed to handle. Common distribution transformer voltage ratings include 4.16kV/480V, 12.47kV/480V, and 34.5kV/480V.
• Power Rating: Expressed in kilovolt-amperes (kVA), indicating the transformer’s capacity to transfer power. Standard ratings range from 15 kVA to 5000 kVA for distribution transformers.
• Impedance: Typically expressed as a percentage, representing the transformer’s internal resistance and reactance. It affects short-circuit current levels and voltage regulation.
• Basic Impulse Level (BIL): Measured in kilovolts (kV), indicating the transformer’s ability to withstand voltage surges. Higher BIL ratings offer better protection against lightning strikes and switching surges.
• Temperature Rise: Defines the maximum allowable temperature increase above ambient temperature under full load conditions. Common ratings are 55°C, 65°C, and 80°C.
• Insulation Class: Determines the maximum operating temperature of the transformer’s insulation system. Common classes include 105°C (A), 130°C (B), and 180°C (H).
• Efficiency: Measured as a percentage, indicating how effectively the transformer converts input power to output power. Modern distribution transformers often have efficiencies exceeding 98%.
• Vector Group: Describes the phase relationship between primary and secondary windings. Common configurations include Dyn11 and Yzn0.
• Tapping Range: Specifies the available voltage adjustment range, typically expressed as a percentage of the rated voltage. A common range is ±2.5% to ±5% in 2.5% steps.
• Short-Circuit Impedance: Expressed as a percentage, indicating the transformer’s ability to withstand short-circuit conditions. It typically ranges from 4% to 6% for distribution transformers.
• Sound Level: Measured in decibels (dB), specifying the maximum noise output of the transformer under normal operating conditions. Lower values indicate quieter operation.

Load Characteristics

The primary load characteristics to evaluate include:

• Load Factor: The ratio of average load to peak load over a specific period. A higher load factor indicates a more consistent power demand, which can lead to better transformer utilization.
• Peak Load: The maximum power demand that the transformer must handle. This value determines the transformer’s required capacity and influences its size and cost.
• Load Growth: Anticipated increases in power demand over time. Considering future load growth ensures the transformer can accommodate expanding energy needs without premature replacement.
• Load Type: Different loads (e.g., resistive, inductive, or capacitive) affect the transformer’s performance differently. For example, inductive loads from motors may require larger transformers to handle starting currents.
• Load Diversity: The variation in power consumption among different connected loads. Higher load diversity can allow for smaller transformer sizing, as peak demands are less likely to occur simultaneously.
• Harmonic Content: Non-linear loads, such as electronic equipment, can introduce harmonics into the system. These harmonics can cause additional heating and losses in the transformer, potentially requiring derating or specialized designs.
• Power Factor: The ratio of real power to apparent power in the system. A low power factor can lead to increased losses and may require transformer oversizing to handle the additional reactive power.
• Duty Cycle: The operating pattern of the load, including on and off periods. Intermittent loads may allow for smaller transformer sizing compared to continuous loads of the same peak value.
• Overload Capability: The transformer’s ability to handle temporary overloads without significant degradation or failure. This is particularly important for applications with occasional high-demand periods.

Sizing

To calculate the required transformer size, use the following formula:

kVA = (Total Connected Load in kW) / (Diversity Factor × Power Factor)

After determining the required kVA rating, select a standard transformer size that exceeds this value. Common distribution transformer sizes include 15 kVA, 25 kVA, 37.5 kVA, 50 kVA, 75 kVA, 100 kVA, and 167 kVA.

Avoid undersizing, which can lead to overheating, reduced efficiency, and premature failure. Conversely, oversizing beyond reasonable future expansion needs can result in unnecessary costs and reduced efficiency at lower loads.

Installation Location and Environment

Indoor installations offer protection from weather elements but require adequate ventilation and fire safety measures. Outdoor installations must withstand various weather conditions and may require additional protective enclosures.

Voltage Ratio

The voltage ratio of a distribution transformer determines its ability to step up or step down voltage levels between the primary and secondary windings. This ratio is expressed as the number of turns in the primary winding divided by the number of turns in the secondary winding.

Distribution transformers typically have voltage ratios that allow them to reduce the voltage from medium-voltage distribution lines (e.g., 11 kV, 33 kV) to low-voltage levels suitable for end-user consumption (e.g., 400/230 V). Common voltage ratios for distribution transformers include:

1. 11 kV/400 V
2. 33 kV/400 V
3. 22 kV/400 V

When selecting a distribution transformer, it’s crucial to choose the correct voltage ratio based on the specific requirements of the power distribution system. Factors to consider include:

1. Primary voltage: The voltage of the incoming power supply from the distribution network.
2. Secondary voltage: The desired output voltage for the end-users or equipment.
3. Voltage regulation: The ability of the transformer to maintain a stable secondary voltage under varying load conditions.

Phase Configuration

Distribution transformers are available in various phase configurations to meet different power distribution needs. The most common configurations are single-phase and three-phase systems.

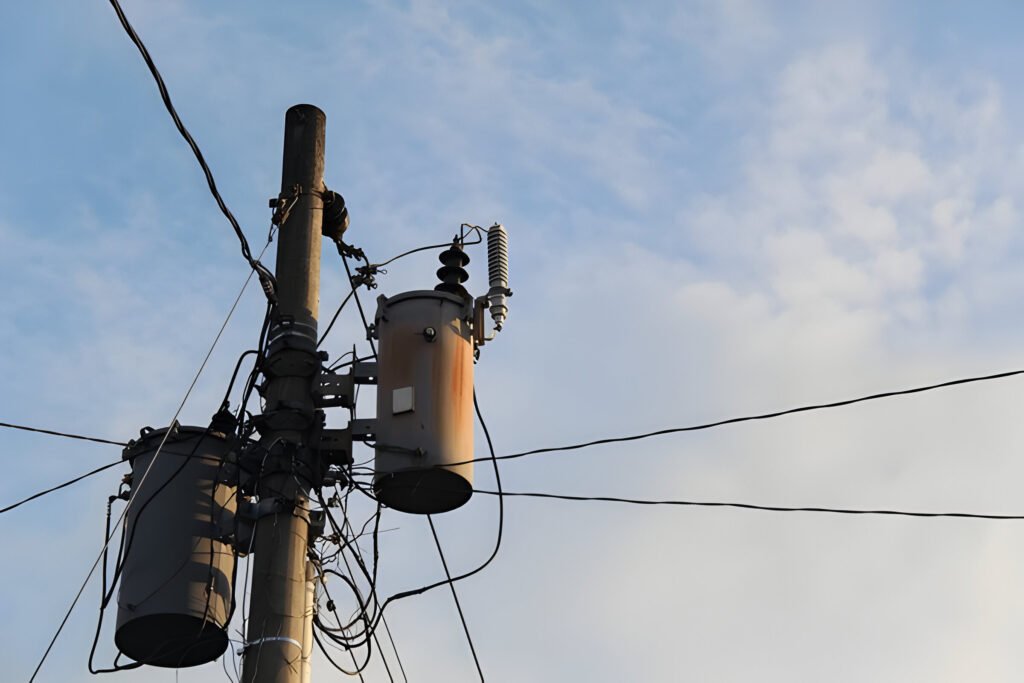

Single-phase transformers are used in residential and light commercial applications. They consist of one primary and one secondary winding, distributing power through two wires. Single-phase transformers are suitable for lower power requirements and are often used in rural areas or for individual household connections.

Three-phase transformers are more common in industrial and commercial settings. They have three sets of primary and secondary windings, distributing power through three or four wires.

In some cases, multiple single-phase transformers can be connected to form a three-phase bank, offering flexibility in system design and maintenance.

Efficiency

The efficiency of a transformer is measured by its ability to transfer electrical energy from the primary winding to the secondary winding with minimal losses. Higher efficiency transformers consume less energy during operation, resulting in reduced operating costs and environmental impact.

Distribution transformer efficiency is typically expressed as a percentage, with modern units achieving efficiencies between 97% and 99%. The primary sources of energy loss in transformers are core losses (also known as no-load losses) and winding losses (load losses).

Core losses occur due to the magnetization and demagnetization of the transformer’s core material, primarily caused by hysteresis and eddy currents. These losses are present even when the transformer is not under load.

Winding losses result from the resistance of the copper or aluminum conductors used in the transformer windings. These losses increase with the square of the current flowing through the windings.

Cost

Purchase price varies based on several factors:

1. Capacity: Higher kVA ratings generally result in increased costs.
2. Type: Liquid-filled transformers are typically less expensive than dry-type transformers of equivalent capacity.
3. Efficiency: More efficient models often have higher upfront costs but lower operating expenses over time.
4. Features: Additional features like monitoring systems or advanced cooling mechanisms can increase the price.

Installation costs depend on:

1. Location: Indoor installations may require special accommodations, while outdoor installations might need protective enclosures.
2. Site preparation: Foundations, containment systems for liquid-filled units, and accessibility modifications can add to installation expenses.
3. Labor: Skilled technicians and specialized equipment may be necessary for proper installation.

Operational costs include:

1. Energy losses: No-load and load losses contribute to ongoing energy consumption.
2. Maintenance: Regular inspections, oil testing for liquid-filled units, and occasional repairs factor into long-term costs.
3. Cooling systems: Some transformers require active cooling, which impacts energy usage.

When evaluating costs, it’s crucial to consider the total cost of ownership (TCO) over the transformer’s expected lifespan, typically 20-30 years. A higher initial investment in a more efficient transformer can lead to substantial energy savings over time, potentially offsetting the higher purchase price.
