An electrical substation is a crucial component of the electrical grid, acting as a node that converts, controls, and distributes electricity to various regions. Whether it’s ensuring that your home receives power or facilitating the transfer of electricity across vast distances, substations play an indispensable role in maintaining an efficient and reliable power supply.
In this article, we’ll explore the key components of electrical substations, their functioning, different types, and important design considerations.
What Is an Electrical Substation

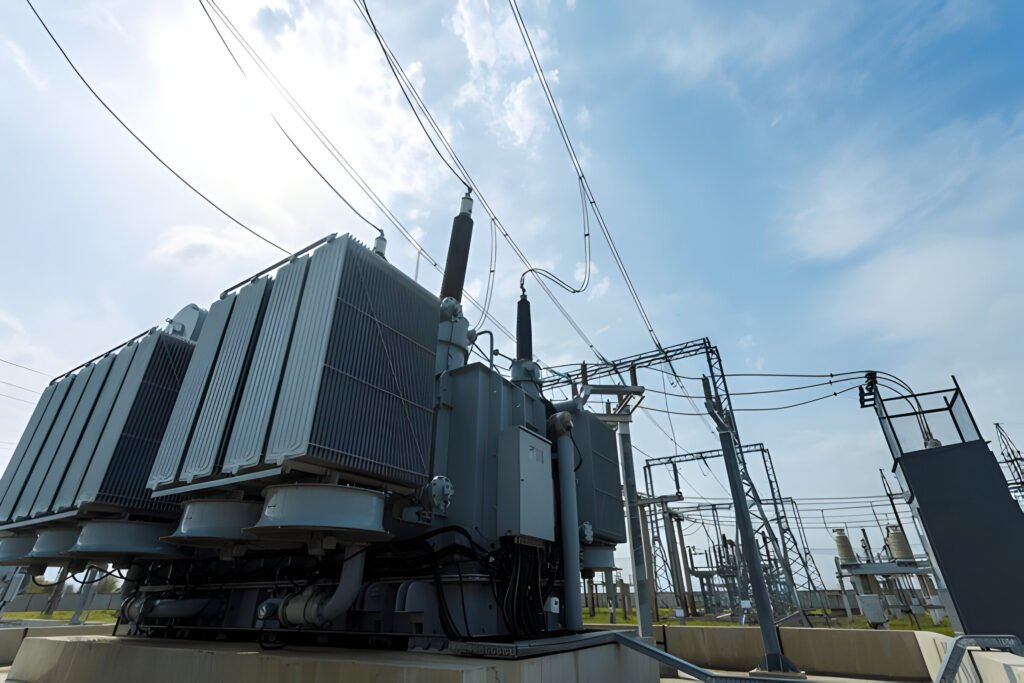

An electrical substation is a critical component of the power grid that serves as a hub for the transmission and distribution of electricity. These facilities are responsible for transforming high-voltage electricity from transmission lines into lower voltages suitable for distribution to homes, businesses, and industrial facilities. Substations typically consist of transformers, switchgear, circuit breakers, and other electrical equipment that work together to ensure the safe and efficient delivery of power.
The primary function of a substation is to step down the voltage of electricity received from high-voltage transmission lines, which can range from 69 kilovolts (kV) to 765 kV, to a lower voltage that can be safely distributed to consumers.
Components of a Substation
- Transformers: Essential devices that step up or step down voltage levels between transmission and distribution systems. They allow efficient power transmission over long distances at high voltages and reduce voltages for consumer distribution.
- Circuit Breakers: Protective devices that quickly interrupt electrical current flow in case of faults, overloads, or short circuits. They prevent equipment damage and ensure substation and connected system safety.
- Switching, Protection, and Control Equipment: Includes disconnect switches, relays, and control panels. These components allow safe equipment isolation for maintenance, substation status monitoring, and automatic response to abnormal conditions.
- Busbars: Conductor bars that distribute electrical power within the substation. Typically made of aluminum or copper, they efficiently carry large currents and connect various substation components like transformers and circuit breakers.
- Grounding Systems: Crucial for substation safety and reliability. They provide a low-resistance path for fault currents to flow into the earth, protecting personnel and equipment. Grounding systems also help stabilize voltage levels and prevent static charge buildup.
How Does an Electricity Substation Work
The primary function of a substation is to step down high-voltage electricity from transmission lines to lower voltages suitable for distribution to homes and businesses.
Incoming high-voltage power, often ranging from 69 kV to 765 kV, enters the substation through incoming lines connected to step-down transformers. These transformers reduce the voltage to distribution levels, typically between 2.4 kV and 34.5 kV. The transformers consist of two sets of coils, known as the primary and secondary windings, which are wrapped around a core made of laminated steel. As the high-voltage current flows through the primary winding, it creates a magnetic field that induces a lower-voltage current in the secondary winding.
Once the voltage has been stepped down, the power is routed through switchgear, which includes circuit breakers and disconnect switches. These devices protect the substation equipment and allow operators to control the flow of electricity. The switchgear can isolate sections of the substation for maintenance or repair, and quickly disconnect the substation from the grid in case of a fault or emergency.
From the switchgear, the lower-voltage power is sent to distribution lines, which carry the electricity to local pole-mounted or pad-mounted transformers. These smaller transformers further reduce the voltage to levels suitable for use in homes (120/240 volts) and businesses (120/208 volts or 277/480 volts).
Types of Electrical Substation
Transmission Substations
Transmission substations are key components in the electrical grid, handling high voltage levels typically ranging from 69 kV to 765 kV. These substations serve as the interface between power plants and the transmission network, stepping up voltages for efficient long-distance power transmission. According to the U.S. Energy Information Administration, transmission voltages in the United States can reach up to 765 kV for alternating current (AC) systems and ±600 kV for direct current (DC) systems.
Transmission substations often incorporate large power transformers to adjust voltage levels and sophisticated protection equipment to safeguard the transmission network from faults and overloads. They play a vital role in maintaining the stability and reliability of the electrical grid.
Distribution Substations
Distribution substations are the bridge between the high-voltage transmission network and the lower-voltage distribution systems that supply electricity to end-users. These substations typically reduce voltage levels from transmission voltages (69 kV to 138 kV) to distribution voltages (4 kV to 34.5 kV). Distribution substations are more numerous and geographically dispersed compared to transmission substations, as they need to be closer to the areas they serve.
Distribution substation transformers are crucial components that step down the voltage to levels suitable for local distribution. These substations also house circuit breakers, disconnect switches, and other control equipment to manage the flow of electricity and protect the distribution network from faults.
Collector Substation
Collector substations, also known as gathering substations, are commonly associated with renewable energy projects, particularly wind and solar farms. These substations collect the power generated by multiple smaller sources and step up the voltage for transmission to the grid. For example, in a wind farm, individual turbines typically generate power at 690 V, which is then collected and stepped up to transmission voltages, often 115 kV or 230 kV.
Collector substations play a crucial role in integrating renewable energy sources into the electrical grid, helping to manage the variable nature of these power sources and ensuring efficient transmission to the broader network.
Converter Substations
Converter substations are specialized electrical substations that facilitate the conversion between alternating current (AC) and direct current (DC) systems. These substations are essential in high-voltage direct current (HVDC) transmission systems, which are becoming increasingly important for long-distance power transmission and interconnecting non-synchronous AC networks.
Converter substations use advanced power electronics, such as thyristor-based or voltage-source converters, to perform the AC-DC conversion. According to the International Council on Large Electric Systems (CIGRE), HVDC systems can transmit power over distances exceeding 2,000 km with lower losses compared to AC systems.
Switching Station
Switching stations, also known as switching substations, are electrical substations that do not include transformers and operate at a single voltage level. Their primary function is to connect and disconnect various transmission lines or other components of the power system. Switching stations use circuit breakers and disconnect switches to control the flow of electricity and isolate sections of the network for maintenance or fault management.
These stations are crucial for maintaining grid flexibility and reliability, allowing operators to reroute power flow during emergencies or planned outages.
Mobile Substation
Mobile substations are compact, transportable units designed to provide temporary power supply or replace damaged substation equipment during emergencies. These substations are typically mounted on trailers or skids and include essential components such as transformers, circuit breakers, and control systems.
Mobile substations offer several advantages, including rapid deployment, flexibility, and the ability to restore power quickly in disaster-affected areas. The Electric Power Research Institute (EPRI) reports that mobile substations can be set up and operational within 24 to 48 hours, significantly reducing downtime during critical situations.
Substation Design Considerations
Location Selection
Key factors influencing location include proximity to load centers, available land area, and environmental considerations. Substations should be strategically placed to minimize transmission losses and ensure reliable power supply to consumers. For instance, distribution substations are typically situated closer to urban areas to facilitate efficient electricity distribution to residential and commercial customers.
Environmental impact assessments are essential when choosing substation locations. According to the International Finance Corporation (IFC), substations should be sited at least 50 meters away from residential areas to minimize electromagnetic field exposure and noise pollution.
Voltage Levels and Power Capacity Requirements
Determining appropriate voltage levels and power capacity is fundamental to substation design. Transmission substations typically handle higher voltage levels, ranging from 69 kV to 765 kV, while distribution substations operate at lower voltages, usually between 4 kV and 34.5 kV.
Power capacity requirements are based on load forecasts and future growth projections. According to the U.S. Energy Information Administration, the average annual electricity consumption for a U.S. residential utility customer was 10,715 kWh in 2020.
Reliability and Redundancy of Equipment
Redundant systems and equipment help maintain power supply during failures or maintenance activities. For example, N+1 redundancy, where one extra unit is installed beyond the minimum required, is common in substation design.
Circuit breakers, transformers, and control systems often have backup units to prevent single points of failure. The Institute of Electrical and Electronics Engineers (IEEE) provides guidelines for substation reliability in their IEEE 493 standard, recommending a minimum availability of 99.9% for critical substations.
Safety and Protection Systems
Implementing robust safety and protection systems is paramount in substation design. These systems safeguard equipment, personnel, and the surrounding environment from electrical hazards and potential failures. Key safety features include:
- Grounding systems: Proper grounding minimizes step potentials and touch potentials, reducing the risk of electric shock. The IEEE 80 standard provides guidelines for substation grounding design.
- Lightning protection: Lightning arresters and overhead ground wires protect substation equipment from lightning strikes and voltage surges.
- Fire protection systems: Automated fire detection and suppression systems are crucial, especially for indoor substations and areas with oil-filled transformers.
- Physical security measures: Fencing, surveillance systems, and access control mechanisms prevent unauthorized entry and potential sabotage.
- Protective relays: These devices detect faults and abnormal conditions, triggering circuit breakers to isolate affected areas and prevent widespread outages.
FAQs
Is Living Next to a Substation Safe
Living near a substation is generally safe if proper safety standards are maintained. However, there may be concerns about electromagnetic field (EMF) exposure and noise pollution. Research suggests that EMF levels near substations are typically below international guidelines, but some people may still prefer to maintain a distance for peace of mind.
Do Substations Generate Electricity
No, substations do not generate electricity. Their primary function is to transform voltage levels, switch power between different circuits, and distribute electricity from power stations to consumers. Power generation occurs at power stations, not substations.
What Is a Safe Distance to Live from an Electrical Substation
Living at least 200 meters from an electrical substation is generally considered safe. At this distance, the electromagnetic field (EMF) exposure is typically well below international guidelines. However, individual substations may vary, so it’s best to consult with the utility company and refer to local regulations when determining a safe distance for a specific location.
