Pole Mounted Transformer the advantages in the distribution network
Pole mounted transformer are widely recognized as a pivotal component in electrical distribution systems, offering flexibility, efficiency, and reliability for a wide range of industrial and commercial projects. As demand grows for smart grid solutions and robust energy infrastructure, many engineering teams, procurement professionals, and project decision-makers are turning to high-quality pole mounted transformer solutions to address their unique needs.

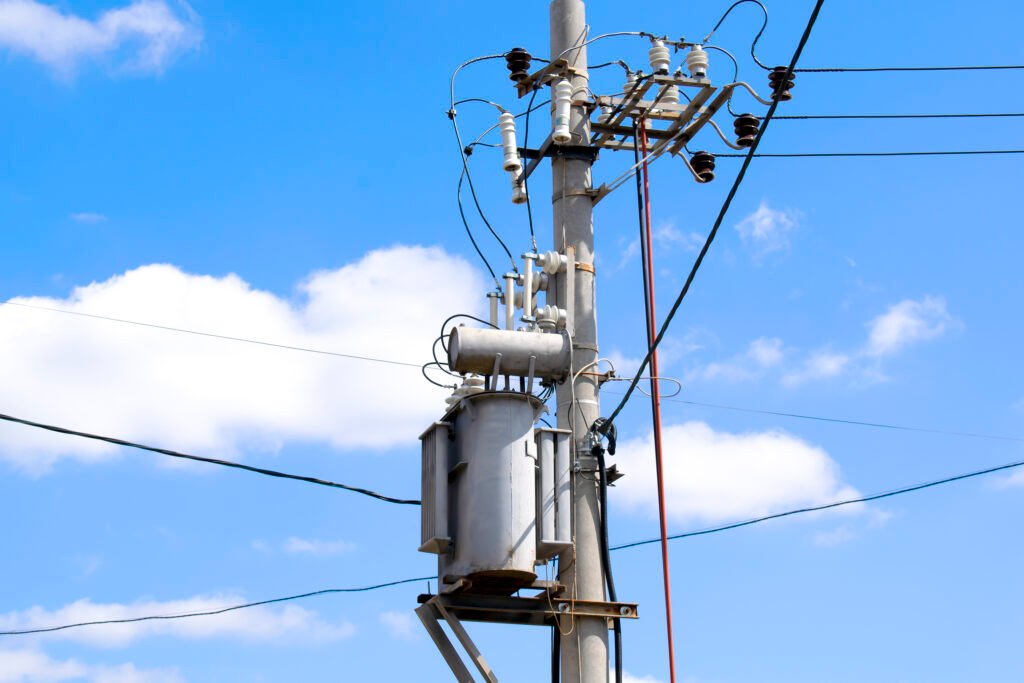

What Is a Pole Mounted Transformer?
A pole mounted transformer is an electrical transformer installed on an overhead utility pole, designed to step down medium-voltage power from distribution lines to a usable voltage level for consumption at factories, manufacturing facilities, or even residential areas. These transformers are crucial for rural electrification, renewables integration, and rapid-deployment infrastructure upgrades.
Key Benefits for Industrial and Commercial Clients
- Efficient Site Utilization: Pole mounted transformers free up valuable ground space, allowing more flexible factory layouts and project planning.
- Lower Installation and Maintenance Costs: Utility pole installation can be completed quickly with less groundwork, reducing labor and permitting expenses.
- Quick Deployment: Ideal for rapid infrastructure expansion or temporary project sites that require scalable, modular power distribution.
- Enhanced Reliability: Modern pole mounted transformers are engineered for harsh environmental conditions, with robust insulation and protection against weather, wildlife, and vandalism.
- Easy Integration with Smart Grid Projects: Suitable for upgrading legacy distribution systems with advanced metering, remote monitoring, and load balancing features.
Real-world Application: Enhancing Grid Efficiency with Pole Mounted Transformers
One of our valued B2B clients, an industrial facilities developer, recently upgraded their power distribution system with our advanced pole mounted transformer solutions. The project called for reliable 33kV/11kV pole mounted transformers to ensure steady energy supply for machinery, lighting, and HVAC systems. After installation, the client reported:
- 20% reduction in energy loss across the feeder lines
- Improved project timeline due to rapid transformer deployment
- Simplified future grid expansion due to modular design
Why Choose a Professional Factory Supplier?
In today’s competitive landscape, partnering with a specialized pole mounted transformer manufacturer ensures:
- Custom Engineering: Products tailored to meet voltage, capacity, and regulatory requirements.
- Stringent Quality Control: Factory testing guarantees safety, durability, and compliance.
- Expert Support: Guidance for optimal installation, maintenance, and after-sales service.
Pole Mounted Transformer Successful Deployment of Large-Scale Power Distribution Project
As a leading factory supplier of pole mounted transformers, we are proud to showcase our recent successful power distribution projects in Kazakhstan, which highlight the reliability and scalability of our transformer solutions for demanding industrial environments.
Overview of Completed Projects
Our recent installations include:
- 10 MVA Power Distribution Project in Kazakhstan
- 18 × 4 MVA Power Distribution Project in Kazakhstan’s Jambyl Region
Both projects utilize robust pole mounted transformers designed to meet the stringent requirements of high-capacity regional power networks, ensuring stable, efficient, and safe power delivery to industrial facilities.
Project Highlights and Technical Details
- High Capacity with Modular Design: The 10 MVA transformer set and the larger 18 × 4 MVA configuration demonstrate our ability to customize solutions from single large units to clustered modular arrays for complex power grids.
- Outdoor Installation for Harsh Conditions: Deployment in open environments required rugged transformers equipped with superior cooling systems and weatherproof enclosures to withstand the local climate.
- Compact Footprint: Pole mounted transformers greatly reduce space needs compared to ground-mounted alternatives, optimizing site layout and minimizing installation footprint — critical factors for large industrial sites.
- Efficient Electrical Connectivity: The transformers feature advanced bushings and insulated connections that ensure low loss and high safety standards, critical in distribution networks serving industrial loads.
Why Pole Mounted Transformers Are Ideal for Kazakhstan Projects
Kazakhstan’s energy infrastructure demands equipment capable of withstanding wide temperature variations, dust, and remote location challenges. Pole mounted transformers deliver:
- Rapid deployment and flexible relocation
- High reliability with minimal maintenance
- Scalability for future capacity expansion
- Cost-effective installation, reducing civil works
These benefits align perfectly with industrial clients and project managers seeking turnkey electrical distribution solutions that optimize operational uptime and project lifecycle costs.
Client Stories with Our Pole Mounted Transformer
The captions on-site celebrated the successful energization of these critical projects, underscoring customer satisfaction:
- “热烈祝贺卢格电气哈萨克斯坦10MVA配电项目成功运行!” (“Warm congratulations to Lug Electric on the successful operation of the 10MVA distribution project in Kazakhstan!”)

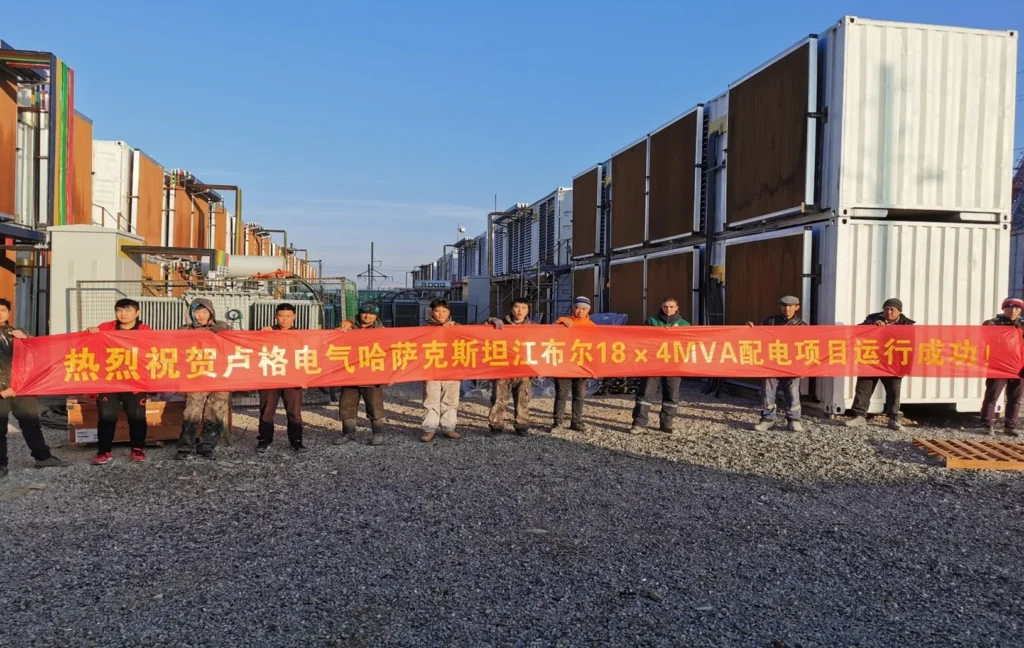

- “热烈祝贺卢格电气哈萨克斯坦江布尔18x4MVA配电项目运行成功!” (“Warm congratulations to Lug Electric on the successful operation of the 18x4MVA distribution project in Jambyl, Kazakhstan!”)
Such milestones prove our commitment to delivering durable, high-performance pole mounted transformers that excel in large-scale energy distribution applications.
Learn more solutions
If your project requires a reliable pole-mounted transformer, please contact our professional team to obtain customized solutions and competitive quotations.
Empowering Kyrgyzstan Power Grid with High-Capacity Pole Mounted Transformer
Our latest milestone achievement in Central Asia highlights the critical role of reliable pole mounted transformers in large-scale electrical distribution projects. Proudly partnering with “ROOQ Electric,” our factory supplied and commissioned robust electrical equipment for a 2×40 MVA, 110/6 kV power distribution project in Kyrgyzstan, designed to enhance grid stability and energy delivery efficiency.
Project Overview and Key Technical Features
The 2×40 MVA pole mounted transformer project features:
- Dual 40 MVA Transformers: High-capacity units engineered for stepping down 110 kV to 6 kV, enabling efficient power distribution across vast industrial and urban zones.
- Outdoor Installation: Transformers and supporting equipment installed on-site, designed with durable radiators and corrosion-resistant cooling fins to withstand extreme weather and environmental stress.
- Advanced Power Connectivity: The project includes specialized medium voltage bushings and insulation that ensure minimal energy losses and heightened operational safety.
- Comprehensive Factory Testing: Each transformer underwent rigorous testing to guarantee performance standards and compliance before shipment to Kyrgyzstan.
Visual Confirmation of Successful Implementation

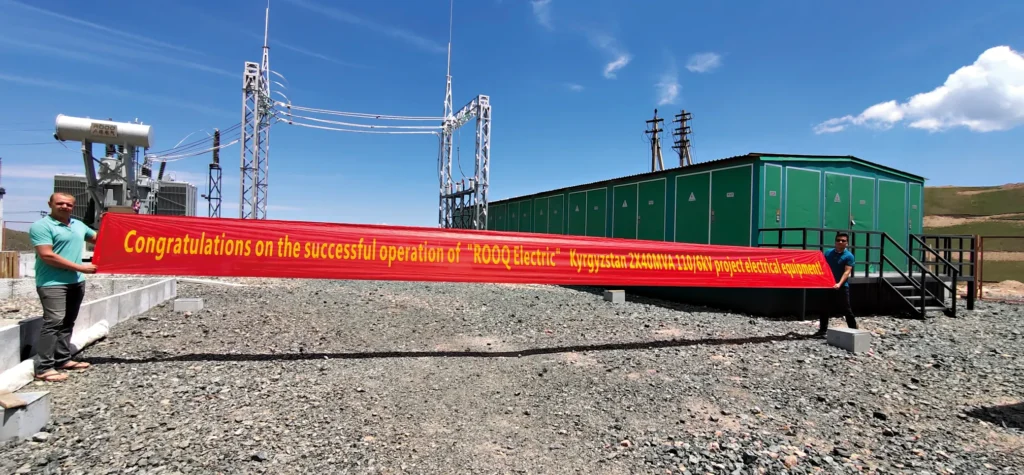

The project’s completion is celebrated with an official banner stating, “Congratulations on the successful operation of ‘ROOQ Electric’ Kyrgyzstan 2×40 MVA 110/6 kV project electrical equipment,” reflecting our confidence in the equipment’s reliability and the client’s satisfaction.
In addition, on-site photos show multiple pole mounted transformers staged and ready for deployment, and the complex outdoor substation environment, showcasing the scale and professionalism of the installation.
Why Choose Our Pole Mounted Transformers for Your Industrial Projects?
For project managers, engineers, and procurement teams evaluating options, our pole mounted transformers offer key advantages:
- High Capacity with Scalable Design: Ideal for large power grids requiring modular or singular transformer setups.
- Durability in Harsh Environments: Designed for outdoor use with optimized cooling and protection to maintain efficiency in rugged locations.
- Fast and Cost-Effective Installation: Pole-mounted design reduces civil work and speeds up project timelines.
- Lower Maintenance Costs: Quality construction decreases failure rates and maintenance frequency.
- Energy Efficiency: Minimizes load losses and improves overall power delivery quality.
At the core of power system modernization lies the need for efficient, dependable, and scalable transformer units. Our successful Kyrgyzstan 2×40 MVA project exemplifies the best practices in packing advanced electrical engineering into compact, pole mounted transformers that meet the exacting demands of contemporary energy networks.
Pole mounted transformer remain a cornerstone technology for utilities, industrial developers, and commercial engineers focused on scalable, efficient, and sustainable power distribution. If your next project demands reliable electrical infrastructure, explore our range of pole mounted transformer solutions for unparalleled performance and value.
FAQ
Q1: What is a pole mounted transformer and where is it typically used?
A pole mounted transformer is an electrical transformer installed on utility poles to step down high-voltage electricity from distribution lines to lower voltages suitable for residential, rural, and commercial power consumption. They are commonly used in areas where underground cabling is impractical or cost-prohibitive, such as remote locations and suburban neighborhoods.
Q2: What capacities do pole mounted transformers usually support?
Single phase pole mounted transformers generally range from a few kVA up to about 167 kVA, while three phase models can reach capacities up to 315 kVA or higher, depending on design. For larger industrial needs, higher capacity pole mounted transformers exceeding 1,000 kVA can be provided to meet substantial power demands.
Q3: What are the primary voltage levels for pole mounted transformers?
Primary voltages commonly handled by pole mounted transformers include 7.2 kV, 14.4 kV, 34.5 kV, and up to 36 kV. These high voltages are stepped down to standard secondary voltages like 120/240 V for residential or commercial use. Proper selection depends on the distribution network design and local requirements.
Q4: What are common installation requirements for pole mounted transformers?
Installation requires poles with sufficient structural strength and proper anchorage to support transformer weight. Adequate electrical clearance, grounding, and accessibility for maintenance must be ensured. Compliance with local electrical codes and standards is mandatory to guarantee safety and reliability during operation.
Q5: How do pole mounted transformers handle environmental and maintenance challenges?
Exposed to weather extremes—such as storms, wind, and flooding—these transformers are designed with durable housings, natural cooling, and protective components like surge arresters. However, their pole-top locations can complicate inspections and repairs, necessitating proactive maintenance to avoid failures caused by insulation breakdown or component wear.
What are Completely Self-Protected (CSP) pole mounted transformers?
CSP transformers integrate internal protective devices such as fuses and surge arresters, enabling them to self-manage common faults without requiring external protective equipment. This design simplifies installation and increases overall system reliability, especially in distribution networks with variable loads.
