Why Do Distribution Transformers Burn

Distribution transformers burn due to various factors such as insulation failure, overloading, lightning strikes, poor connections, and mechanical damage. These incidents can lead to safety hazards, power outages, and costly repairs. Understanding these causes and learning how to fix and prevent transformer fires is crucial for maintaining reliable power distribution.

Distribution Transformers

Causes of Distribution Transformers Burn

Insulation Failure

Transformers rely on insulating materials, such as paper, oil, and solid insulators, to maintain electrical isolation between different components. Over time, these materials can degrade due to thermal, mechanical, or chemical stresses. When insulation weakens, it leads to dielectric breakdown, causing short circuits and arcing inside the transformer. This can significantly raise the temperature and potentially ignite a fire.

Overloading and Overheating

Overloading occurs when a transformer is subjected to electrical loads that exceed its design capacity. This leads to excessive current flow, resulting in increased heat generation. Prolonged exposure to such conditions can cause the transformer oil and insulation to overheat, deteriorating their effectiveness.

Lightning Strikes and Switching Surges

Lightning strikes and switching surges are external events that can introduce high voltage transients into the power system. These surges can exceed the dielectric strength of transformer insulation, leading to electrical breakdowns. Such high-energy events can cause immediate damage, resulting in insulation puncture, arcing, and, consequently, fires.

Poor Connections and Contacts

Poor electrical connections and contacts within a transformer can create localized heating, known as hot spots. These hot spots arise from increased electrical resistance at the points of poor contact. Over time, the excessive heat can degrade the surrounding insulation and eventually cause a breakdown.

External Short Circuits and Over-Voltages

External short circuits and over-voltages put significant stress on transformers. Short circuits can cause a rapid increase in current, leading to high thermal and mechanical stresses. Over-voltages, on the other hand, can exceed the insulation’s capacity, causing a breakdown. Both scenarios can damage the transformer’s components and increase the likelihood of a fire.

Unbalanced Three-Phase Loads

In a three-phase electrical system, balanced loads ensure that the current is evenly distributed across all phases. Unbalanced loads, however, cause unequal current distribution, leading to excessive heating in one or more windings. Continuous operation under such conditions can degrade insulation and increase the risk of thermal failure and fires.

Mechanical Damage and Impacts

Transformers are susceptible to mechanical damage from external impacts, such as those caused by falling objects or collisions during transportation and installation. Physical damage can compromise the structural integrity of the transformer, leading to oil leaks, insulation damage, and misalignment of internal components.

Distribution Transformers

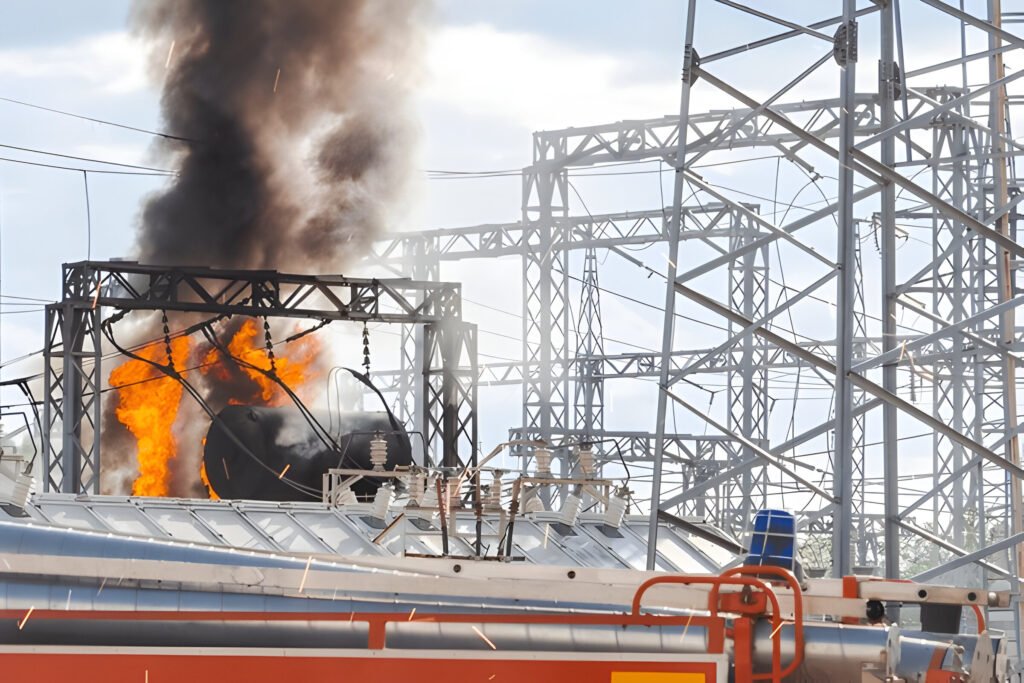

Consequences of Distribution Transformer Fires

Safety Hazards to Utility Workers, Firefighters and Public

The intense heat generated during a fire can cause severe burns and other injuries. Additionally, the release of toxic gases, such as polychlorinated biphenyls (PCBs) or sulfur hexafluoride (SF6), poses serious health hazards.

Localized Power Outages and Service Disruptions

When a distribution transformer burns, it invariably leads to localized power outages, affecting homes, businesses, and essential services. The duration of these outages can vary based on the severity of the fire and the time required to replace the damaged equipment.

Collateral Damage to Nearby Assets and Environment

The high temperatures and potential explosion can damage adjacent buildings, vehicles, and infrastructure. Additionally, the burning of transformer oil and other materials can lead to the release of harmful pollutants, contaminating soil and water sources. This environmental impact necessitates extensive cleanup efforts and can have long-term ecological consequences.

High Costs of Equipment Replacement and Service Restoration

Replacing burned transformers and restoring services involves significant costs. These expenses include not only the price of new equipment but also labor, transportation, and installation. Additionally, there may be costs associated with environmental remediation and legal liabilities. Utility companies must allocate considerable resources to address these incidents, which can strain budgets and divert funds from other critical infrastructure projects.

Distribution Transformers

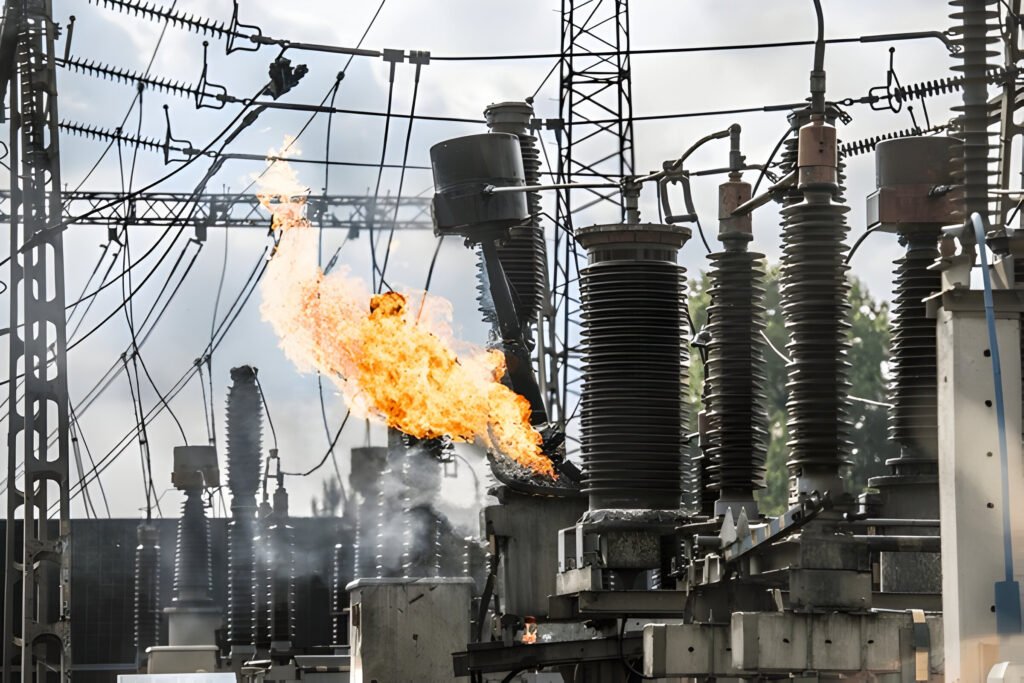

How to Fix Distribution Transformers Burn

Isolating and De-energizing Transformer

One of the first steps in addressing a distribution transformer fire is to isolate and de-energize the affected transformer. This process involves disconnecting the transformer from the electrical grid to prevent further damage and ensure the safety of personnel. Isolating the transformer helps to contain the fire and prevents it from spreading to other parts of the electrical system.

Isolation can be achieved by opening the circuit breakers or disconnect switches that connect the transformer to the power grid. This action stops the flow of electricity to the transformer, allowing firefighters and maintenance crews to safely approach and extinguish the fire. Proper lockout-tagout (LOTO) procedures should be followed to ensure that the transformer remains de-energized during the firefighting and repair process.

Using Foam and Dry Chemical Agents over Water Spray

When combating a fire in a distribution transformer, it is important to use the appropriate extinguishing agents. Foam and dry chemical agents are preferred over water sprays for several reasons. Water can conduct electricity, which poses a risk of electrical shock to firefighters. Additionally, water can react with some of the materials inside the transformer, potentially causing hazardous conditions.

Foam agents work by creating a blanket over the burning material, effectively smothering the fire and preventing the release of flammable vapors. This method is particularly effective for oil-based fires, which are common in transformers. Dry chemical agents, such as monoammonium phosphate or sodium bicarbonate, interrupt the chemical reactions occurring during combustion, thereby extinguishing the fire.

Controlling Oil Spill Fires and Protecting Exposures

Transformers often contain insulating oil, which can leak and catch fire during a fault. One of the key strategies for managing oil spill fires is the use of fire containment systems, such as bunds and oil-water separators, that can contain and isolate the spilled oil.

Fire containment systems are designed to capture and hold the spilled oil, preventing it from spreading to other areas. Bunds are physical barriers that surround the transformer, while oil-water separators are used to separate oil from water in the event of a spill. These systems help to minimize environmental contamination and protect nearby assets.

In addition to controlling oil spills, it is important to protect exposures, which are nearby structures or equipment that could be damaged by the fire. This can be achieved by applying cooling water or foam to the exposed surfaces, reducing the risk of ignition and heat damage. Fire-resistant barriers and coatings can also be used to protect critical infrastructure from fire exposure.

How to Prevent Distribution Transformers Burn

First, ensure proper sizing of the transformer based on the expected load profile. Overloading a transformer beyond its rated capacity leads to excessive heat generation, which can cause insulation breakdown and internal component damage.

Regular maintenance is crucial for preventing transformer burns. This includes periodic inspections of the transformer’s cooling system, such as checking for oil leaks, clogged filters, or malfunctioning fans. Maintaining proper oil levels and quality is essential, as the oil serves both as an insulating medium and a heat dissipation agent. Oil testing should be conducted to monitor for contaminants, moisture, or degradation that can compromise its insulating properties.

Installing protective devices like surge arresters and fuses can help safeguard transformers against voltage spikes and short-circuit conditions. These devices act as a first line of defense, diverting excessive currents and voltages away from the transformer windings.

Additionally, implementing a comprehensive monitoring system that tracks key parameters such as temperature, oil level, and gas content can provide early warning signs of potential issues before they escalate into transformer failures.

Proper grounding and bonding of the transformer tank and associated equipment is another critical aspect of preventing burns. Inadequate grounding can lead to stray currents and potential differences that can cause arcing and localized heating.

Lastly, adhering to manufacturer guidelines for installation, operation, and maintenance is crucial. This includes following recommended loading limits, ensuring proper ventilation and clearances around the transformer, and using compatible replacement parts during repairs. By implementing these preventive measures and conducting regular inspections and maintenance, the risk of distribution transformer burns can be significantly reduced, ensuring reliable power supply to customers.
