Three-phase transformers are a fundamental component in the transmission and distribution of electrical power across industrial and commercial settings. These specialized devices are designed to efficiently convert three-phase alternating current (AC) from one voltage level to another, enabling the safe and reliable transfer of electrical energy over long distances.
In this blog post, we will delve into the intricacies of three-phase transformers, exploring their working principles, construction, and the critical roles they fulfill in the machinery industry.
What is a Three-Phase System
A three-phase system is a type of polyphase electrical power distribution system that utilizes three alternating currents, each offset by one-third of a cycle (120 degrees). This system is widely used in electrical power generation, transmission, and distribution due to its efficiency and reliability compared to single-phase systems. Three-phase systems consist of three conductors or phases, often referred to as L1, L2, and L3, or Phase A, Phase B, and Phase C.
In a balanced three-phase system, the voltages and currents in each phase have equal magnitudes but are phase-shifted by 120 degrees from each other. The voltage between any two phases is called the line voltage, while the voltage between a phase and a neutral point is called the phase voltage.

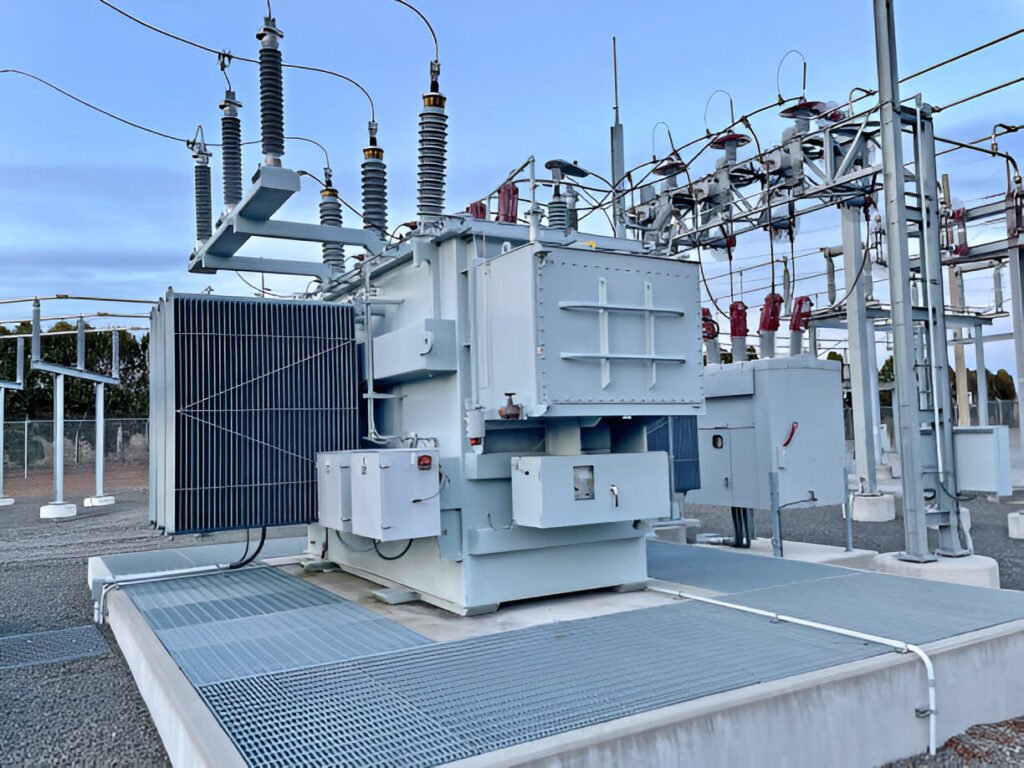

What Is a Three-Phase Transformer
A three-phase transformer is a type of power transformer designed to operate with a three-phase system. It consists of three interconnected single-phase transformers or a single unit with three sets of primary and secondary windings wound around a common magnetic core. The primary winding of a three-phase transformer receives electrical energy from a three-phase supply, while the secondary winding delivers the transformed energy to a three-phase load.
Three-phase transformers are used to step up or step down voltage levels, allowing for efficient power transmission over long distances and suitable voltage levels for end-users. Compared to using three single-phase transformers, a three-phase transformer offers several advantages, including reduced size, weight, and cost, as well as improved efficiency and balanced load distribution.
The windings of a three-phase transformer can be connected in various configurations, such as delta (Δ), star (Y) or wye, zigzag, or a combination of these. The choice of configuration depends on factors such as the desired voltage transformation, load characteristics, and the need for a neutral connection. Delta and wye connections are the most common, with delta providing a stable voltage supply and wye allowing for a neutral point and phase-to-neutral voltage access.
How Three-Phase Transformers Work
Three-phase transformers are designed to handle the transmission and distribution of electrical energy in a three-phase system. These power transformers utilize the principles of electromagnetic induction to step up or step down voltage levels between the primary and secondary windings.
The core of a three-phase transformer typically consists of three sets of windings, one for each phase. The primary winding receives the three-phase input voltage, which creates a magnetic field in the transformer’s core.
As the alternating current flows through the primary winding, it induces a corresponding voltage in the secondary winding. The ratio of the number of turns in the primary and secondary windings determines the voltage transformation. For step-up transformers, the secondary winding has more turns than the primary, resulting in a higher output voltage. Conversely, step-down transformers have fewer turns in the secondary winding, reducing the voltage level.
Types of Three-Phase Transformers
Core-Type
Core-type three-phase transformers consist of three single-phase transformers mounted on a common core. The magnetic circuit is made up of a three-legged laminated iron core, with each leg carrying the windings for one phase. The primary and secondary windings are wound concentrically around each leg. This design is more common in lower power ratings and is generally less expensive than shell-type transformers.
Shell-Type
In shell-type three-phase transformers, the windings are surrounded by a single magnetic core. The core consists of three limbs, with the outer limbs carrying the windings for two phases and the center limb carrying the winding for the third phase. Shell-type transformers offer better magnetic coupling and lower leakage reactance compared to core-type transformers. They are typically used in high-power applications and where a more compact design is required.
Components of Three-Phase Transformers
- Primary windings: The windings connected to the input voltage source, which create a magnetic field when energized.
- Secondary windings: The windings that produce the output voltage based on the magnetic field generated by the primary windings.
- Magnetic core: A laminated iron core that provides a path for the magnetic flux and couples the primary and secondary windings.
- Insulation: Materials such as oil or solid insulation that provide electrical isolation between windings and the core.
- Cooling system: Radiators, fans, or oil pumps that dissipate heat generated during operation.
- Bushings: Insulated conductors that allow the primary and secondary windings to connect to external circuits.
- Tank and conservator: A steel tank that contains the transformer components and insulating oil, and a conservator that allows for oil expansion and contraction.
- Tap changer: A mechanism that allows for adjusting the turns ratio and output voltage of the transformer.
Three-Phase Voltage and Current
In a three-phase system, the voltages and currents are 120 degrees out of phase with each other. The three phases are typically labeled as A, B, and C, or R, Y, and B. The voltage between any two phases is called the line voltage, while the voltage between a phase and neutral is called the phase voltage.
The relationship between line voltage (V_L) and phase voltage (V_P) depends on the transformer connection type:
- Delta (Δ) connection: V_L = V_P
- Wye (Y) connection: V_L = √3 × V_P
Similarly, the relationship between line current (I_L) and phase current (I_P) is:
- Delta (Δ) connection: I_L = √3 × I_P
- Wye (Y) connection: I_L = I_P
Types of Three-Phase Transformer Connections
Delta (Δ) Connection
In a delta connection, the three transformer windings are connected end-to-end, forming a closed loop that resembles a triangle. This configuration allows for higher voltage and current capacity compared to a wye connection. Delta-connected transformers are commonly used in high-power applications and can operate without a neutral conductor.
Wye (Y) Connection
Also known as a star connection, the wye configuration connects one end of each transformer winding to a common point, creating a neutral point. The other ends of the windings form the three phases. Wye-connected transformers are suitable for lower voltage applications and provide a neutral point for grounding or connecting to a fourth wire in a three-phase, four-wire system.
Delta-Wye and Wye-Delta Configurations
Delta-wye (Δ-Y) and wye-delta (Y-Δ) configurations involve connecting the primary windings in delta and the secondary windings in wye, or vice versa. These configurations are used to step up or step down voltages while providing a neutral point on one side of the transformer. They also introduce a 30° phase shift between the primary and secondary voltages, which can be beneficial in certain applications.
Zigzag Connection
In a zigzag connection, each phase winding is split into two halves, and the halves from different phases are connected in a zigzag pattern. This configuration is used to create a neutral point in three-phase, four-wire systems without the need for a separate neutral conductor. Zigzag-connected transformers are commonly used for grounding and reducing harmonic currents in power distribution systems.
Scott-T Connection
The Scott-T connection, also known as the T-T connection, is used to convert between three-phase and two-phase systems. It consists of two single-phase transformers, with the primary windings connected in a T-shape and the secondary windings in a two-phase configuration. This connection is useful in applications where two-phase loads, such as older industrial motors or heating systems, need to be powered from a three-phase supply.
Open Delta (V-V) Connection
An open delta, or V-V connection, is a cost-effective method for providing three-phase power when one transformer in a delta-delta configuration fails or needs to be removed for maintenance. In this connection, two transformers are connected in an open delta formation, allowing the system to continue operating with reduced capacity. However, this configuration is less efficient and should only be used as a temporary solution until the faulty transformer is replaced.
Advantages of Three-Phase Transformers
High Efficiency and Reduced Power Losses
Three-phase transformers offer high efficiency in power transmission and distribution compared to single-phase transformers. The balanced nature of three-phase systems allows for a more efficient transfer of electrical energy, minimizing power losses in the form of heat dissipation. The reduced losses lead to lower operating costs and improved overall system performance.
Compact Size and Lower Material Cost
For a given power rating, three-phase transformers are more compact than their single-phase counterparts. The smaller size is achieved through the efficient utilization of the magnetic core and windings. This compact design translates to lower material costs, as less copper and iron are required for construction. The reduced size also facilitates easier installation and saves valuable space in electrical substations and industrial facilities.
Balanced Load Distribution
Three-phase transformers excel at handling balanced loads in power distribution systems. The three phases are evenly distributed, ensuring a stable and consistent power supply to connected equipment. This balanced load distribution helps maintain system stability, reduces voltage fluctuations, and minimizes the risk of overloading individual phases. Balanced loading also contributes to the longevity and reliable operation of the transformer and associated electrical devices.
Applications of Three-Phase Transformers
Power Generation and Distribution
In power generation plants, such as hydroelectric, thermal, or nuclear facilities, three-phase transformers are used to step up the generated voltage to high levels suitable for long-distance transmission. These high-voltage transmission lines minimize power losses and enable the efficient transfer of electrical energy over vast distances. At substations, three-phase transformers step down the voltage to levels appropriate for distribution to industrial, commercial, and residential consumers.
Industrial Applications
Three-phase transformers are extensively used in various industrial applications. They are essential for powering large industrial machines, such as motors, compressors, pumps, and heavy machinery. The three-phase power supplied by these transformers enables the efficient and reliable operation of industrial equipment. Industries such as manufacturing, mining, oil and gas, and chemical processing rely on three-phase transformers to meet their high power demands and ensure smooth production processes.
Commercial Applications
Commercial establishments, such as large office buildings, shopping malls, hospitals, and data centers, require a reliable and efficient power supply. Three-phase transformers are employed to provide the necessary power for lighting systems, HVAC units, elevators, and other critical electrical loads. The balanced power distribution achieved by three-phase transformers ensures stable voltage levels and minimizes power quality issues.
