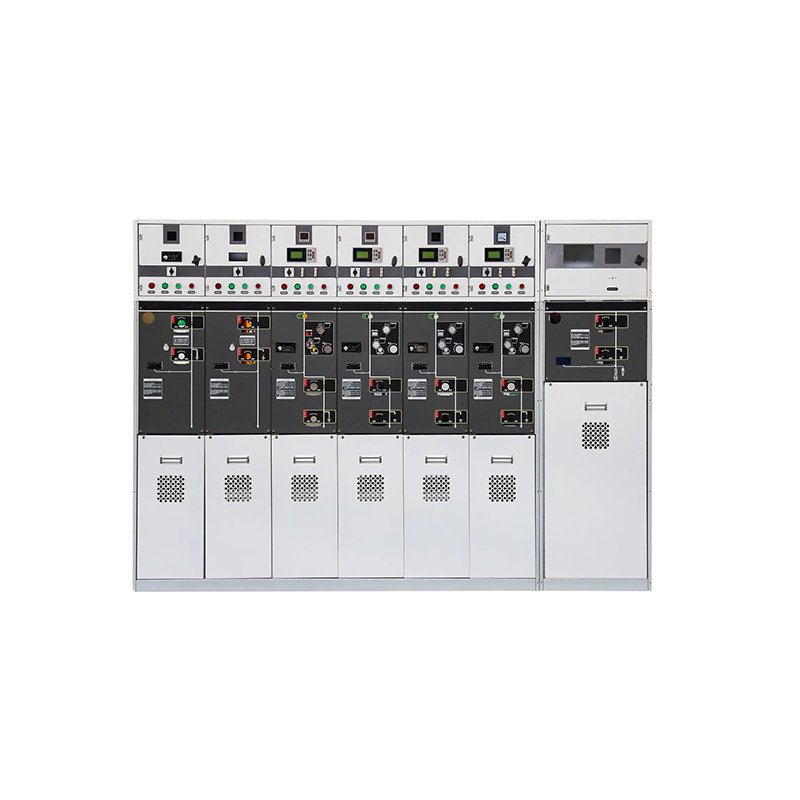

SF6 GAS RMU

Additional information

Rated Voltage(KV)	12
Rated Current(A)	630
Frequency(Hz)	50/60
Rated impulse withstand voltage(peak)(kV)	48
Rated current of busbar(A)	630
Rated short time withstand current(KA)	20
Rated peak withstand current(KA)	50KA
Rated short-circuit duration(S)	4
Insulating medium	Air
Protection Level	Enclosure is IP4X,it isIP2X when the compartment door and circuit breaker chamber door are opened.

Air temperature: ±40℃; Daily average ≤25°C
Altitude above sea level: Maximum installation altitude: 4000m
Wind: less than 35m
Earthquake intensity: no more than 8 degrees;

Note: Customized products are available,Beyond those services condition, please check with sales before ordering.

0/5 (0 Reviews)

Smaller Dimension:SFs as the dielectric material, smaller than the oil-dielectric material switchgear.
High Reliablity and Safety:Alive parts and switching mechanisms are sealed into SFs filed endlosure. This kind of switchgear is not easly affected by extemal ambient conditions, the reliabity and safety standard can be guaranteed, therefore, the product is maintenance-free and would not be at risk of electric shock and fire.
Simple Maintenance:Because alive parts and switching mechanisms are sealed into SFs tank, not easy to rust,thus reducing matenance work; vacuum circuit breaker is employed which is also maitenance-free.
Flexible Application:Standard modular units and flexible combinations fulfill all requirements of network nodes and terminal users.

outdoor, fully insulated, fully sealed structure, can adapt to any harsh environment.
visible fracture, confirm the position of switch contacts, ensure the safety of personnel.
small size, lightweight, compact structure, small footprint.
simple installation, easy operation, safety, and reliability, maintenance free.
and three work linkage structure to effectively prevent equipment defects from running.
