In the realm of electrical systems, voltage classifications play a crucial role in determining safety measures, insulation requirements, and equipment specifications.
This blog post will delve into the nuances of these voltage categories, exploring their definitions, applications, and the standards that govern them.
Voltage Classifications
Electrical systems utilize various voltage levels to transmit and distribute electrical energy efficiently. These voltage levels are categorized into three main classifications: Low Voltage (LV), Medium Voltage (MV), and High Voltage (HV).

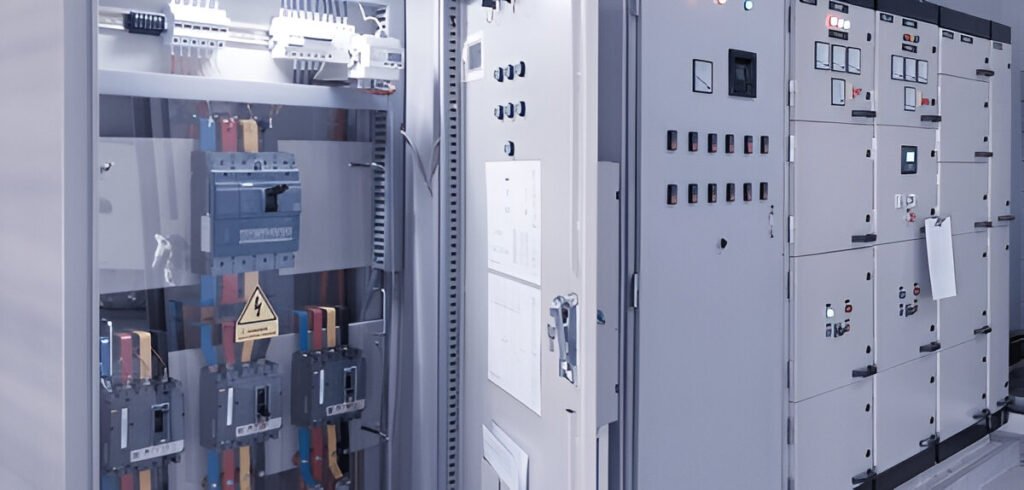

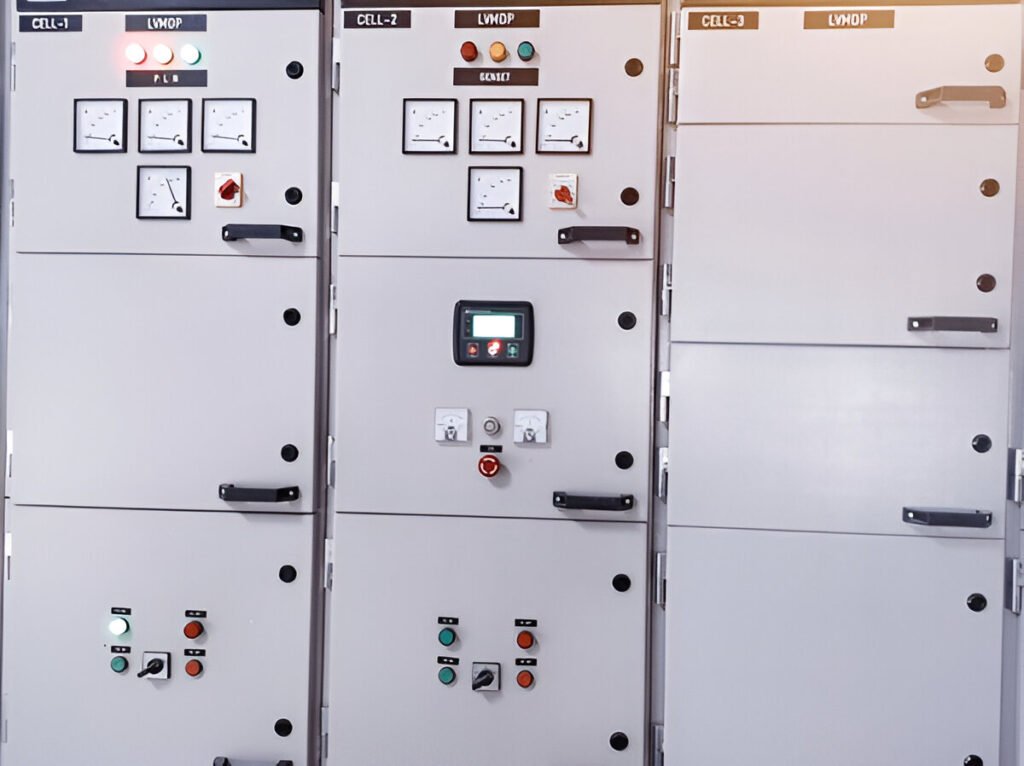

Low Voltage (LV)
Low Voltage systems typically operate at voltages below 1,000 volts (V). In most countries, the standard Low Voltage range is between 100V and 600V, with common nominal voltages being 120V, 230V, and 480V. Low Voltage is primarily used for end-user applications, such as residential and commercial buildings, where it powers lighting, appliances, and small machinery.
LV systems are characterized by their relatively high current levels and low voltage drop over short distances. The lower voltage reduces the risk of electrical shock, making LV systems safer to work with compared to higher voltage classifications. However, Low Voltage systems require larger conductors to minimize voltage drop and power losses over longer distances.
Medium Voltage (MV)
Medium Voltage refers to electrical systems operating between 1,000V and 69,000V (69kV). Common Medium Voltage ratings include 4.16kV, 12.47kV, and 34.5kV. MV systems are used for power distribution from substations to end-users, as well as for powering large industrial equipment and facilities.
Medium Voltage transformers are employed to step down the voltage from transmission levels to distribution levels. MV systems offer a balance between power capacity and distribution distance, allowing for more efficient power transmission compared to Low Voltage systems. However, the higher voltage levels in MV systems require specialized equipment, such as Medium Voltage transformers and switchgear, and increased safety protocols to prevent electrical hazards.
High Voltage (HV)
High Voltage systems operate at voltages above 69kV, with common ratings including 115kV, 230kV, and 500kV. HV is used for long-distance power transmission from power plants to substations, where the voltage is then stepped down to Medium Voltage for distribution.
The high voltage levels in HV systems allow for efficient power transmission over long distances with minimal power losses. However, the increased voltage also poses greater safety risks, requiring strict safety protocols and specialized equipment designed to handle high voltage levels.
Comparative Analysis of Voltage Levels
Voltage Ranges
- Low Voltage (LV) systems operate at or below 1,000 volts, typically between 120V to 600V.
- Medium Voltage (MV) ranges from 1,000 volts to 100,000 volts, commonly used in distribution systems.
- High Voltage (HV) exceeds 100,000 volts and is further divided into Extra-High Voltage (EHV) for voltages between 345,000 to 765,000 volts, and Ultra-High Voltage (UHV) for voltages above 765,000 volts.
Equipment Specifications
- Low Voltage equipment includes circuit breakers, switches, transformers, and cables rated for 600 volts or less.
- Medium Voltage equipment consists of switchgear, transformers, and cables rated between 1kV to 100kV, with specialized insulation and construction.
- High Voltage equipment requires advanced insulation techniques, larger clearances, and specialized materials to withstand the high electrical stress.
- EHV and UHV equipment demand state-of-the-art technologies and stringent design considerations to ensure reliable operation and safety.
Safety Considerations
- Low Voltage systems pose a lower risk but still require proper grounding, insulation, and protection against electric shock.
- Medium Voltage systems demand enhanced safety protocols, personal protective equipment (PPE), and specialized training for personnel.
- High Voltage systems necessitate strict safety procedures, extensive PPE, and highly trained professionals to mitigate the severe risks associated with high voltage.
- EHV and UHV systems require the highest level of safety measures and are typically handled by specialized teams with advanced equipment and rigorous protocols.
Cost
- Low Voltage systems are the most economical, using readily available components and standard installation practices.
- Medium Voltage systems require higher-grade equipment, specialized installation, and increased safety measures, resulting in higher costs compared to Low Voltage.
- High Voltage systems involve substantial investments in equipment, insulation, and infrastructure, making them significantly more expensive than lower voltage systems.
- EHV and UHV systems are the most capital-intensive, requiring cutting-edge technologies, extensive land use, and specialized construction techniques.
Hazards and Arcs
- Low Voltage arcs are less severe but can still cause burns, fires, and equipment damage.
- Medium Voltage arcs are more intense and can result in serious injuries, equipment destruction, and power outages.
- High Voltage arcs are extremely dangerous, producing high temperatures, explosive forces, and potentially lethal injuries.
- EHV and UHV arcs are catastrophic events that can vaporize metal, cause widespread damage, and pose extreme risks to life and property.
Practical Applications of Each Voltage Level
Low Voltage Applications
Low voltage systems, typically defined as those operating below 1,000 volts, are commonly used in residential, commercial, and light industrial settings. Some common applications of low voltage include:
- Residential wiring: Low voltage is used for powering household appliances, lighting, and electronic devices. Standard residential voltages are 120V and 240V in North America, and 230V in many other parts of the world.
- Commercial buildings: Low voltage systems power lighting, office equipment, and HVAC systems in commercial spaces such as offices, retail stores, and schools.
- Control systems: Low voltage is used in control systems for industrial machinery, building automation, and process control equipment.
- Telecommunications: Low voltage powers telecommunications equipment, including phones, routers, and network switches.
Medium Voltage Applications
Medium voltage, generally defined as voltages between 1,000 and 100,000 volts, is used in a variety of industrial and utility applications. Some common uses of medium voltage include:
- Industrial plants: Medium voltage is used for powering large motors, pumps, compressors, and other heavy machinery in industrial facilities such as manufacturing plants, refineries, and mining operations.
- Distribution substations: Medium voltage is used in electrical substations to step down high voltage from transmission lines to lower voltages suitable for distribution to end-users.
- Medium voltage transformers: These transformers are used to step down medium voltage to low voltage for use in commercial and industrial buildings.
- Renewable energy systems: Medium voltage is used in the collection and distribution of electricity generated by wind farms and solar power plants.
High Voltage Applications
High voltage, typically defined as voltages above 100,000 volts, is primarily used in the transmission of electricity over long distances and in specialized industrial applications. Some common applications of high voltage include:
- Long-distance power transmission: High voltage is used to transmit electricity efficiently from power plants to substations, minimizing power losses over long distances.
- Electrical substations: High voltage is stepped down to medium voltage at electrical substations for distribution to end-users.
- Industrial processes: High voltage is used in specialized industrial applications such as electric arc furnaces, large-scale electrolysis, and particle accelerators.
- Research and testing: High voltage is used in research laboratories and testing facilities for studying high-voltage phenomena, insulation materials, and electrical equipment.
FAQs
What is H in voltage?
In voltage, H stands for high. High voltage refers to electrical potential large enough to cause harm through electric shock or create dangerous electrical arcs. The exact threshold for what constitutes high voltage varies by context, but is generally considered to be 1,000 volts or higher in most applications.
Is 220V considered high voltage?
220V is not typically considered high voltage. In many countries, 220V is the standard voltage for residential and light commercial electrical outlets. While 220V can still pose an electrocution risk, it is not high enough to be classified as high voltage, which usually starts at 1,000V or more.
